How to Read the Waveform

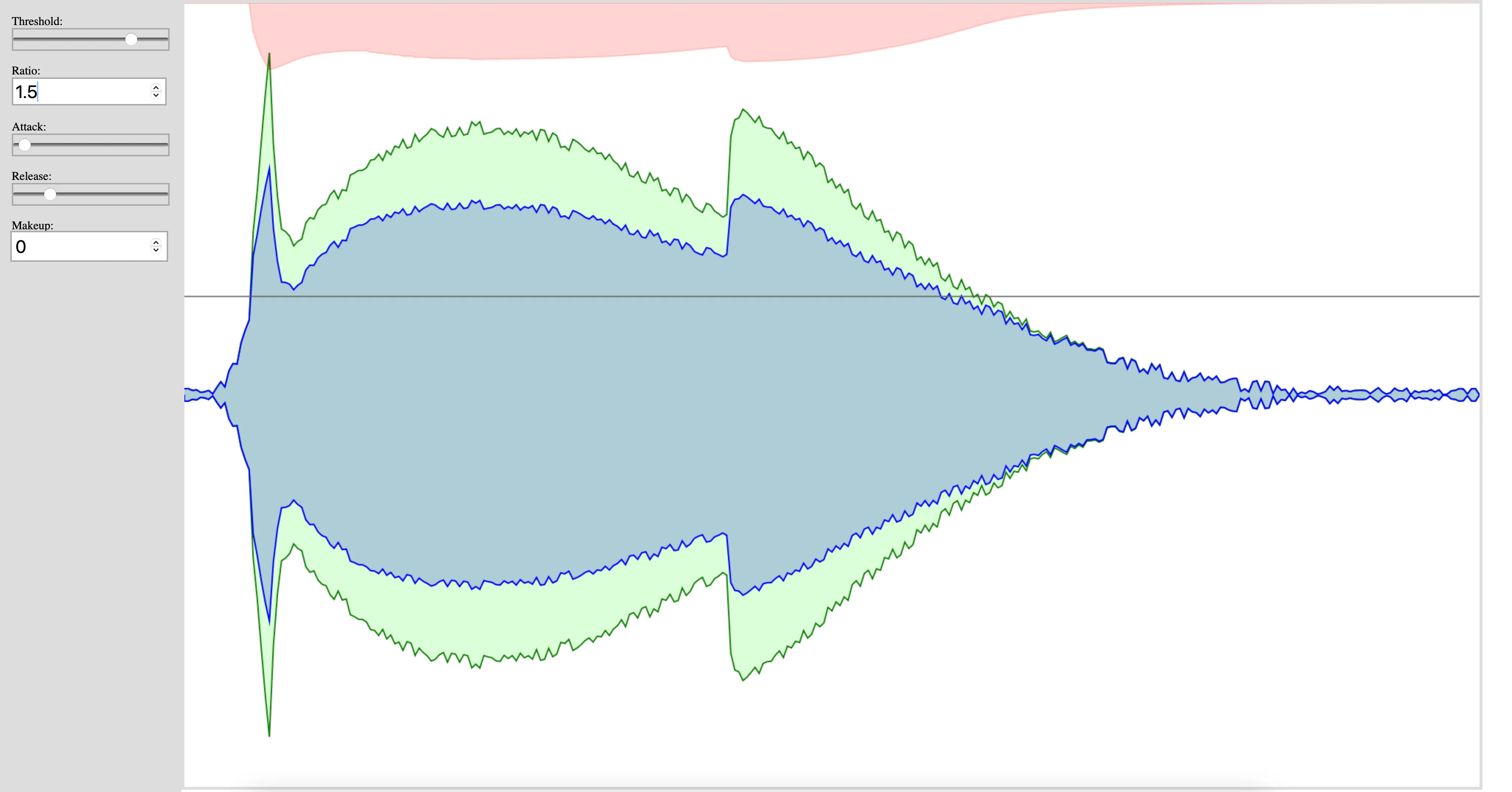

1. The Color-Coded Audio Path When using a compression visualizer, you will typically see three distinct elements:

• Green Waveform: This represents your original, uncompressed audio.
• Blue Waveform: This is the result of the compression, showing how the audio has been reshaped.
• Red "Blob": This indicates the gain reduction, or exactly how much volume is being taken away at any given moment.

2. Visualizing the Threshold and Ratio

• The Threshold: This is the placement control. As you lower the threshold line, the compressor begins to "chop off" the green peaks, turning them into a blue, compressed signal.
• The Ratio: This is your squeeze control. As you increase the ratio, the blue waveform is smooshed closer to the threshold line, causing the red gain reduction blob to grow larger and more aggressive.

3. Attack and Release: Shaping the Envelope Contrary to common myths, attack and release are rates of change, not delays.

• Fast Attack: Visually grabs and turns down the peaks (transients) immediately.
• Slow Attack: Allows the initial green spike to pass through "unharmed" before the blue compressed waveform kicks in.
• Fast Release: The compressor lets go immediately after a peak. If set too fast, it can cause "pumping," where you see and hear the audio unnaturally "dip" and jump back up.
• Slow (Long) Release: This setting (defined as 500ms to 20 seconds) keeps the compressor active for a longer duration. Visually, the red gain reduction blob stays on-screen longer and eases off slowly. This is more transparent because it preserves the original shape of the waveform while lowering the overall volume.

4. The Peak and Valley Technique To understand what you are seeing, use the mountain range analogy.

• The Peak (Transient): The loud, sharp moment at the start of a note.
• The Valley (Sustain): The quieter, ringing part of the note that follows the peak.
• Makeup Gain: Because compression makes the peaks quieter, we use makeup gain to turn everything back up. Visually, this raises the blue "valleys" so they are louder and thicker than the original green ones, creating a more consistent sound.

To become a top-tier audio engineer, you must develop "critical listening" skills—the ability to identify specific technical changes in a sound signal. The Technical Ear Trainer is a specialized resource designed to help you bridge the gap between hearing a sound and understanding its technical properties.

Here is how you can use the specific modules within this tool to sharpen your professional ears:

1. Frequency Precision with Parametric Equalization

The Parametric Equalization task is perhaps the most fundamental for any engineer. Use this module to train your brain to associate specific tonal colors with their corresponding frequency numbers. By repeatedly identifying boosts and cuts across the spectrum, you will eventually be able to reach for a specific frequency on your console instinctively rather than hunting for it.

2. Mastering Dynamics: Compression and Expansion

Understanding how a signal’s volume changes over time is crucial for creating professional mixes. The Dynamic Compression and Dynamic Expansion tasks challenge you to hear subtle changes in a sound’s "envelope"—its attack, sustain, and release.

• Compression: Focus on how the peaks are tamed and how the "weight" of the sound shifts.
• Expansion: Notice how the quiet parts of the signal are pushed further away, increasing the dynamic range.

3. Spatial Awareness: Mid-Side and Reverberation

Modern mixing often requires a deep understanding of the stereo field and depth.

• Mid-Side: Use this task to learn how to distinguish between centered information (Mid) and the wide, atmospheric elements (Side) of a mix.
• Reverberation: Training with this module helps you identify the size of a virtual space and the length of its decay, which is vital for placing instruments in a "3D" soundstage.

4. Identifying Technical Artifacts

A great engineer is also a "technical detective." The resource provides tasks for identifying Distortion and Audio Clip Edit Points.

• Training your ears to hear harmonic distortion allows you to use saturation creatively while avoiding accidental clipping.
• Practicing with Audio Clip Edit Points ensures you can hear the smallest clicks, pops, or unnatural transitions that occur during the editing process, allowing you to deliver a flawless final product.

Note on Usage: While the source provides these specific categories of training, the specific user interface (such as "Start" buttons or score tracking) is common to such web-based tools but not explicitly detailed in the provided text. You may want to independently verify the exact navigation of the site as you integrate it into your routine.

Analogy for Understanding: Think of technical ear training like learning to cook as a professional chef. While a casual diner can tell if a soup is "salty," a professional chef can taste the soup and tell you exactly how many grams of salt were added and whether it was sea salt or table salt. Using this ear trainer turns you from a casual listener into a "sonic chef" who knows exactly which ingredients are in the mix.
